PRODUCTS

Die Casting product examples

whatever we do ,die-cast parts accompany us throught out the day , in the car, in road traffic,at work,at home ,in the metro . die-cast part ensure functionalities ,and very often they are of oustanding beauty. without castings, the live like without electric, car can't  move ,light is off ,phone can't call . Die casting parts is a around you

    On syx liminted ,die casting products can be manufactured cost- effectively:faster,better,cheaper.we show many die casting product examples belowed .all allowed by my customer.you can see complex aluminium die casting part in different industry,and different process for you excllent metal parts.

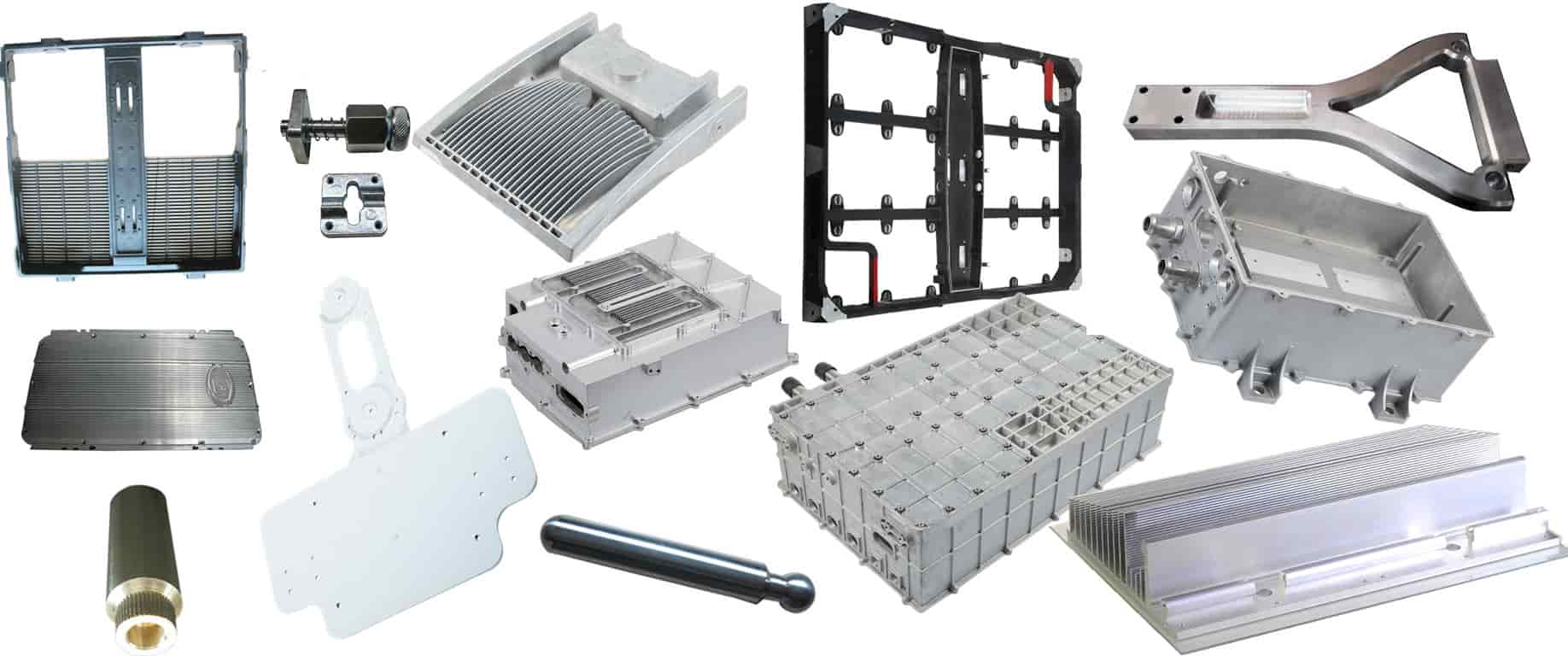

Die Casting Product Examples

cnc machining metal part showroom

A good casting design will take into account not only the precision required to meet the requirements of form, fit and function, but will also take into account maximizing tolerance to achieve a longer die life and longer production runs with less inspections

Please Contact Us with your product specification if it is not listed there. we helped many customers and designer to develop and manufacture custom and complex metal parts in China.

SYX Products examples of die casting ,cnc machining

  • aluminium led display canbinet

    500*500 aluminium led display canbinet custom

     Note :We’re agreed by showing the ablility of 500*500 aluminium led display canbinet custom
    , not for sale.



  • cnc machining cover

    aluminium cover panel exterior| cnc machining china

    aluminium cover panel exterior by cnc machining procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.cnc machining   4  5. Surface treatment: deburring, adnoize ,painting ,etc 5. Inspection and packing

    2 material : 6061 aluminium

    3.Size:mm ,weight

    4. Application:  smart home

  • Communication die casting case

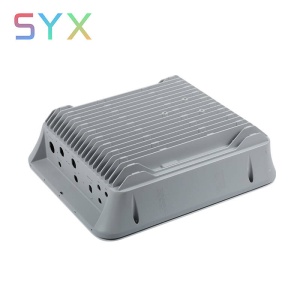

    Aluminium die casting ep. : Communication housing

     Note :We’re agreed by showing the ablility of Communication casing by aluminium die casting china , not for sale.



  • die-casting-tv-aluminium-case

    Aluminium Die Casting example :back housing for Tv

     Note :We’re agreed by showing the ablility of Die Casting aluminium case for Tv , not for sale.



  • aluminium-extrusion

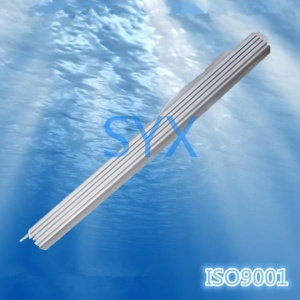

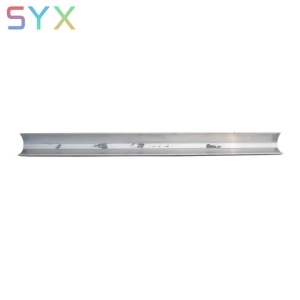

    aluminium extrusion manufacturers in usa

     Note :We're agreed by showing the ablility of aluminium extrusion manufacturers in usa , not for sale.



  • aluminium-tube-by-cnc-lathe

    aluminium tube fittings By CNC Lathe china

     Note :We’re agreed by showing the ablility of aluminium tube fittings By CNC Lathe china , not for sale.



  • 147-aluminum-6061-t6-prototype-for-moto

    aluminum 6061 t6 prototype for moto

     Note :We’re agreed by showing the ablility of aluminum 6061 t6 prototype for moto , not for sale.



  • motor controllers kit

    Aluminum die casting EP.:motor controllers kit

     Note :We’re agreed by showing the ablility of motor controllers kit die casting , not for sale.



  • DIE CASTING PART FOR COMUNICASTION

    aluminum Die casting example : Communication kits

     Note :We’re agreed by showing the ablility of  Die casting parts china for Communication , not for sale.

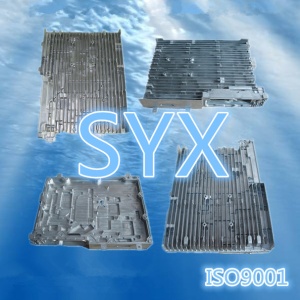

  • aluminum-die-casting-heatsink-for-telecom

    aluminum die casting heatsink design for telecom

    <strongaluminum die casting heatsink design for telecom in china  procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  ,Die Casting china, 4  5. Surface treatment: deburring, polishing, anodized 6.    cnc machining  7.Inspection and packing

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:   Communication

  • die casting part for electric car

    Aluminum Pressure Die Casting manufacturer for electric car

    Aluminum Pressure Die Casting manufacturer for electric car procedure:

    1.design and makingMould  2.800T  Die Casting ,cnc machining3. Surface treatment: deburring, polishing,sand-blasting  4.Inspection and packing

    2 material : aluminum ADC12

    3.Size:mm ,weight

    4. Application: BYD electrocar  Die Casting supplier

  • syx assembly

    Assembly line by die casting supplier

     Note :We’re agreed by showing the ablility of Assembly line by die casting supplier , not for sale.



  • aluminium display prototype

    china aluminium CNC Rapid Prototype for led display

    china  aluminium CNC Rapid Prototype for led display procedure:

    1.design  ,2 metal rapid prototype  3.  cnc machining  4  5. Surface treatment: deburring, polishing,Powder coating 6.    cnc machining  7.Inspection and packing,assembly

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • comunication die casting china

    China Aluminum die casting for communication

    Our offered China Aluminum die casting  for communication with the top grade material and advance die casting machine,center furnace,cnc machining,powder coating line.DFM,Diecast Simulation available, Along with this, our personnel ensure that flawless products are delivered meet our customer  requirement.

    Features: aluminium die casting ,cnc machining ,powder coating



  • 2000T aluminium die castings supplier

    china dongguan aluminium die castings supplier

     Note :We’re agreed by showing the ablility of  china dongguan aluminium die castings supplier   , not for sale.



  • anodized aluminium cnc lathe 1

    CNC Turning part By CNC Lathe machining shenzhen china

    CNC Turning part By CNC Lathe machining  shenzhen china procedure:

    1.design  ,2 rapid prototype service  3. CNC Lathe machining 4    g 5. Surface treatment: deburring,powder coating ,adnoize etc  5. Inspection and packing

    2 material : 6061 aluminium  6063 5052

    3.Size:1000mm ,weight

    4. Application: smart home

  • copper iron CNC lathe

    cnc turning parts by cnc lathe

     Note :We're agreed by showing the ablility of cnc turning parts by cnc lathe , not for sale.



  • Die casting led display canbinet

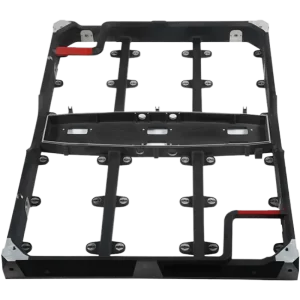

    custom aluminium die casting led display cabinet

     Note :We’re agreed by showing the ablility of custom aluminium die casting led display cabinet , not for sale.



  • led display underground

    custom aluminium led display frame

    custom aluminium led display frame procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  1250T Die Casting china, 4  5. Surface treatment: deburring, polishing,Powder coating 6.    cnc machining  7.Inspection and packing,assembly

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • led light housing

    custom large led die casting housing

     Note :We’re agreed by showing the ablility of custom large led die casting housing , not for sale.



  • custom led display canbinet

    custom led display underground canbinet | Aluminium die casting

    custom aluminium led display canbinet for underground,rental  procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  1250T Die Casting china, 4  5. Surface treatment: deburring, polishing,Powder coating 6.    cnc machining  7.Inspection and packing,assembly

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • custom metal aluminum a360 prototype casting

    custom metal A360 prototype casting

     Note :We’re agreed by showing the ablility of custom metal A360 prototype casting , not for sale.



  • o-ring for waterproof

    custom quare o-ring for led display warter proof

    custom quare o-ring for led display warter proof  procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  Stamping,  5. Surface treatment: deburring, Brushing,adnoize etc    6.Inspection and packing,

    2 material :copper ,brass ,5052  plate as the clients’requirement

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

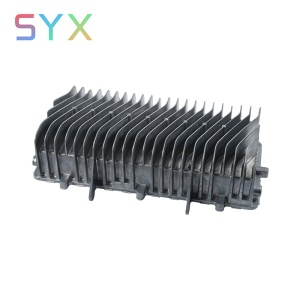

  • die casting Telecom

    die casting heatsink fan

     Note :We’re agreed by showing the ablility of die casting heatsink fan , not for sale.



  • die casting game play

    die casting metals for game play machines

     Note :We’re agreed by showing the ablility of die casting of metals

    , not for sale.



  • Die casting mould china

    die casting mold supplies

    die casting mold supplies  procedure:

    1.design ,SIMULATION REPORT 2 cnc machining ,EDM ,etc3.   Die Casting mould trial , 4.  Inspection and packing

    2 material : 8407,skd61,1.2344

    3.Size:mm ,weight

    4. Application: Die Casting

  • die casting mould

    die casting mould manufacturer in china

    Die casting mould:called dies, melted metal such as alumium, zinc , injected into the mould  ,then solidifies into geometrically complex final part,. it’s important component in the die casting process .  There are two main types of die casting tooling – hot chamber die (used for low melting temperatures alloys, such as Magnesium,zinc,) and cold chamber die (used for  high melting temperatures metal, such as aluminum,Magnesium,and the material price is expensive then hot chamber die).

      So The diecast mould in diecasting step process are important.if you design wrong ,and samller size. it’s hard to produce good die casting part.

  • die casting parts china

    die casting parts china

     Note :We’re agreed by showing the ablility of  die casting parts china , not for sale.



  • die casting foot massage device

    die casting products for medical device

    die casting products for  medical device procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  ,Die Casting china, 4  5. Surface treatment: deburring, polishing, anodized 6.    cnc machining  7.Inspection and packing

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:  medical device

  • die casting comunication

    die casting telecommunications in china

     Note :We’re agreed by showing the ablility of die casting telecommunications in china , not for sale.



  • led quick lock

    Draw quick lock latch LED display cabinet

    led display accessory-quick pin -simple pin. procedure:



    1.design  ,2 rapid prototype service  by cnc machining 3.  cnc lathe ,Turning cnc,Die Casting china,Stamping,etc  4  5. Surface treatment: deburring, polishing,Powder coating  etc    6.Inspection and packing,assembly

    2 material : ADC12,iron, zamak

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • electric-car-parts-supplier

    electric car die casting parts suppliers

    Reliable & leading manufacturer & supplier in China of die casting part for  200V ~ 1140V vector control VSD (AC drives, inverters), servo drives diecast housing,controller aluminium housing , EMI filters die casting casing ,



  • extrusion aluminum china

    extrusion aluminum power cover china for led display

     Note :We're agreed by showing the ablility of extrusion aluminum power cover china for led display , not for sale.



  • extrusion aluminium in stock

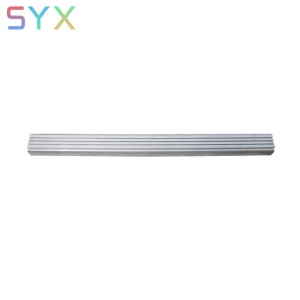

    extrusion aluminum products in stock

    Extrusion aluminum products in stock by syx liminted specialize in cnc machining.sometime you don’t need to open extrusion mould, we have many current extursion in stock ,send me drawing now . maybe I can deliver your product in 1 days




  • aluminium module cover

    flatness 0.1 mm module aluminium plate

    flatness 0.1 mm module aluminium plate   by china die casting company procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  Stamping,  5. Surface treatment: deburring, Brushing,adnoize etc    6.Inspection and packing,

    2 material :copper ,brass ,5052  plate as the clients’requirement

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • 17-high-pressure-aluminium-castingsand casting finished

    high pressure aluminium casting

     Note :We’re agreed by showing the ablility of high pressure aluminium casting
    , not for sale.

    Small cost of mould, quick cutting in market, low risk of project input

  • high pressure aluminium-die-casting-shell

    high pressure die casting shell

    high pressure die casting shell procedure:

    1.design and making Mould  2.1250 T  Die Casting ,cnc machining3. Surface treatment: deburring, polishing,sand-blasting  4.Inspection and packing

    2 material : aluminum ADC12

    3.Size:mm ,weight

    4. Application: LED LIGHT

  • iron prototype

    IRON 42CrMo4 metal rapid prototype China

    IRON 42CrMo4 metal rapid prototype China  procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.   4  5. Surface treatment: deburring, 5. Inspection and packing

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:  moto

  • Iron cnc machining service china

    Iron cnc machining service china

    china Syx manufacturer supply Iron cnc machining service with 50set cnc machine, we are professional in complex component cnc machine parts.Like the pic . all line thickness is 1 mm. take 3 days to finished the parts and meet constomer requirement.



  • led housing die casting

    large led light housing aluminum

     Note :We’re agreed by showing the ablility of large led light housing aluminum , not for sale.



  • screw,pin for led display canbinetled display pin 2

    led display accessory-quick pin -simple pin-fastener

    led display accessory-quick pin -simple pin-fastener  procedure:



    1.design  ,2 rapid prototype service  by cnc machining 3.  cnc lathe ,Turning cnc,Die Casting china,Stamping,etc  4  5. Surface treatment: deburring, polishing,Powder coating  etc    6.Inspection and packing,assembly

    2 material : ADC12,iron, zamak

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • Die casting led display canbinet

    led display component

    led display component  by  cnc lathe ,Turning cnc,assembly,Die Casting china procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  cnc lathe ,Turning cnc,assembly,Die Casting china, 4  5. Surface treatment: deburring, polishing,Powder coating 6.    6.Inspection and packing,assembly

    2 material : ADC12,iron,

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

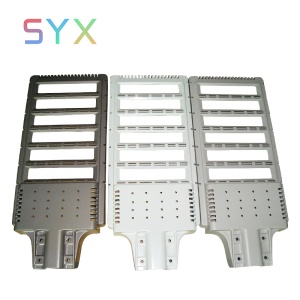

  • led light die casting

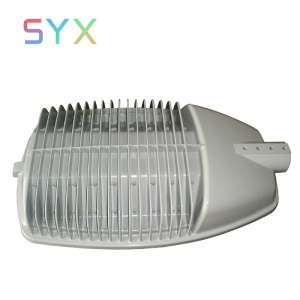

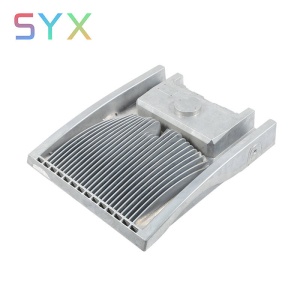

    led street light body

    SYX Die casting company has 17 years in business led street light body taught us a lot. . We made and delivered die cast aluminium components on the highest level.Always using raw materials of the highest grade and advanced machines

  • Magnesium die casting

    Magnesium die casting for led display module

     Magnesium die casting for led display module procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.  1250T Die Casting china, 4 Flatness is about 0.15 5. Surface treatment: deburring, polishing,Powder coating 6.    cnc machining   7.Inspection and packing,assembly

    2 material :  Az91d

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • motor body aluminum die casting

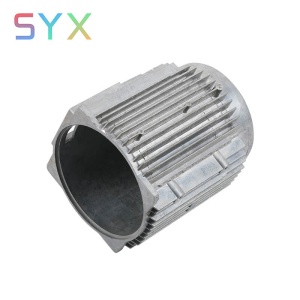

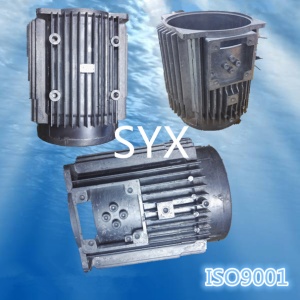

    motor body aluminium die casting

    now this customer is closed down .so the mold  can be sold if you need ,please feel free to contact me

    it’s made by cold-die casting machine ,with four slider  mold .we also put a iron

    hoop on the top of  motor body

  • motor-controller

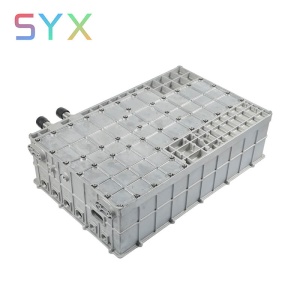

    motor control aluminium casing

     Note :We're agreed by showing the ablility of motor control aluminium casing , not for sale.



  • motor controller die casing

    motor controller casing | aluminium die casting china

    Motor controller casing by cnc machining and die casting procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.2000T  Die Casting , 4. Surface treatment: deburring, polishing,sand-blasting  5. cnc machining6.Inspection and packing

    2 material : aluminum 6061-T6

    3.Size:mm ,weight

    4. Application:   electric car

  • BYD die casting cover

    oem die casting cover china

    oem die casting cover china procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3.500 T  Die Casting , 4. Surface treatment: deburring, polishing,sand-blasting  5. cnc machining6.Inspection and packing

    2 material :adc12

    3.Size:mm ,weight

    4. Application:   electric car

  • one stop led display canbinet

    one stop Led Display Canbinet Design – machining-assembly

    one stop Led Display Canbinet Design – machining-assembly  procedure:

    1.design  ,2 rapid prototype service  by cnc machining 3. Die Casting , 4  5. Surface treatment: deburring, polishing,Powder coating 6. cnc machining6.Inspection and packing,assembly

    2 material : ADC12

    3.Size:mm ,weight

    4. Application:   LED DISPLAY

  • led flood light housing

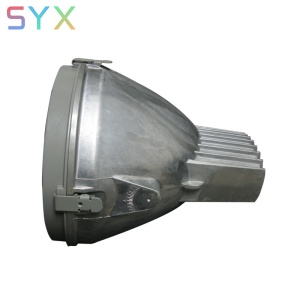

    outdoor flood light housing

    SYX Die casting company has 17 years in business outdoor flood light housing taught us a lot. . We made and delivered die cast aluminium components on the highest level.Always using raw materials of the highest grade and advanced machines
